Sparkular Battery

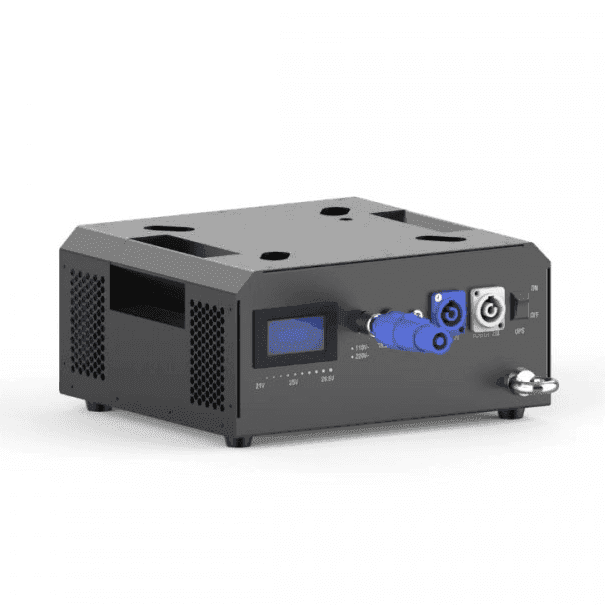

SPARKULAR BATTERY SP-0520
SPARKULAR SYSTEMS FX.
Portable 220v battery. AC. with 500w. load
for coupled equipment BT-01 and BT-06
SPARKULAR BATTERY SP-0520
Technical data:
- Application and placement on flat surfaces or withmaximum inclinationsof 45 degrees in all directions.
- Alphanumeric control LCD with load sampling and duration at all times.
- Automatic switching mode for loading or unloading of use.
- POWERCOM 220v power output. AC 50/60 Hz. For the connected equipment 500w.
- Average autonomy of duration 12h.
- 5v.DC power connector for DMX wireless antennas.
- Power supply connectors POWERCOM in / out 20A.
- Metallic Chassis Black Color.
- Direct coupling for Sparkular BT-01 and mini BT-06 models.
- Mains power 220v AC.50 / 60 Hz
- Power consumption 700w.
- Powercom / Schuko 1.5m network cable (included)
- Dimensions. 266x235x130 mm.
- Weight. 7.5 kg.
Recommendations for use:
- Bridge between machines with PORWERCOM max. 4 units 2800w. (Only to charge the battery)
- You can not be loading and using the system at the same time
(the switching system is automatic but for security we will not use both modes at the same time)
- As in a current generator (Generating set) when connecting the coupled equipment
we must leave a margin of time (Stabilization) since the battery is activated until the coupled equipment is activated.
- The equipment (Battery) always has a minimum load or it may be damaged.
- If the equipment (Battery) is going to stop being used in a period longer than 3 months after beingcompletelyrecharged
and a periodic review of it every two months to avoid deterioration.
