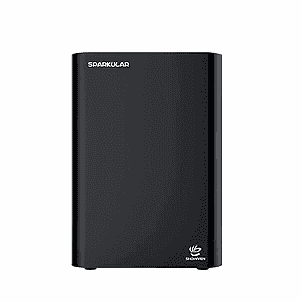

Sparkular BT-01
SPARKULAR BT-01
SPARKULAR SYSTEMS FX.
It is a New Special Effects Systemfor
the worldofscenography in general.
Known as (Cold Fire) which does not use pyrotechnics.
It has been created for all types of indoor and outdoor applications.
SPARKULAR BT-01
Technical data:
- Application and placement on flat surfaces or withmaximum inclinationsof 45 degrees in all directions.
- Output of the effect (sparks) upwards in Vertical.
- Adjustable height of the effect (sparks) from 1 to 5 meters.
- Waterproof safety stopper for product deposit
- Alphanumeric control LCD, Menu access buttons andparameter settingsub menu.
- Reader sensor for the work time card.
- Power supply connectors POWERCOM in / out 20A.
- Control signal connectors (canon) XLR 3pin in / out.
- External chassis Black color Fire retardant ABS plastic.
- Function DMX 512 control protocol on 2 channels.
- RDM data control protocol function for the original Sparkular controllers.
- Internal wireless control function Included (Not included)
- Coupling included as standard for Sparkular portable battery.
- Mains power 220v AC.50 / 60 Hz. Fuse 10A.
- Power consumption 400w.
- Powercom / Schuko 1.5m network cable (included)
- Dimensions. 200 × 215 × 285 mm.
- Weight. 8.5 kg.
Recommendations for use:
- Bridge between machines with PORWERCOM max. 6 units 2400w. load power.
- Always use original granulated product envelopes of
200g HC8200.
Average duration 20 minutes./ 900 rolls at 1,5m.
- Ambient working temperature -10 ℃ ~ 50 ℃
- With humid work environments it is recommended to empty the product deposit before and after use
to avoid the caking of the product and to avoid the obstruction of the appliance.
- In special cases of humidity, it is recommended to aerate the product by emptying the envelope in acontainer and stirring it type of pan.
- Product time card included in each product envelope and NOT REUSABLE.
- On all Sparkular controllers and equipment The CLEAR function allows us to do a test and cleaning check
of the equipment used (The CLEAR function does not consume any time on the equipment used)
