Sparkular Controller

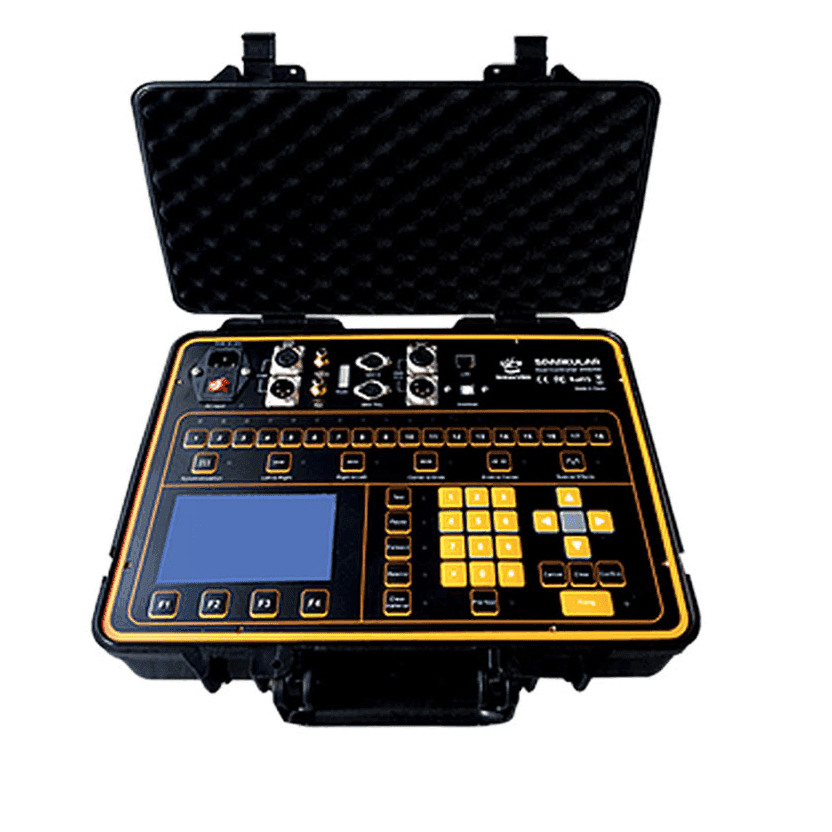

SPARKULAR CONTROLLER ZK-6200
SPARKULAR SYSTEMS FX.
Smart controllerwith RDM data protocol
for sparkular systems
SPARKULAR CONTROLLER ZK-6200
Technical data:
- Intelligent and pre-programmed controller for Sparkular systems.
- Data Control RDM data that allows us to control each connected unit and configure the parameters separately
(Heating, Temperature, Times, Minutes of Consumables remaining, Heights, Etc ...)
- LCD of alphanumeric control.
- Allows you to work with a maximum of 18 connected units of any Sparkular series.
- 6 default programs established with Sweep, Waves and Random effects.
- CAN data ports XLR 3pin to link several ZK controllers at the same time.
- Signal output ports control of RDM devices data XLR 3pin out.
- MiDI ports to link and create on / off shooting sequences.
- ETERNET port cat5. for control external units. (not activated consult software)
- USB port for data upload and download andSoftware.
- RCA ports for input synchronized audio signals.
- Internal battery does not need to be plugged into the network to be able to work.
- Average autonomy of load duration 48h.
- Very sturdy plastic carrying case Color Black ABS.
- Mains power 220v AC.50 / 60 Hz
- Power consumption 15w.
- 1.5m IEC / Schuko network cable (included)
- Dimensions. 390x300x110 mm.
- Weight. 3.5 kg.
Recommendations for use:
- The system of internal bacteria allows to be charging and working with the team at the same time.
- The equipment (Controller) always has a minimum load or it may be damaged.
- If the equipment (Controller) is going to stop being used in a period longer than 3 months after beingcompletelyrecharged
and a periodic review of it every two months to avoid deterioration.
- On all Sparkular controllers and equipment The CLEAR function allows us to do a test and cleaning check
of the equipment used (The CLEAR function does not consume any time on the equipment used)
