Sparkular Radio Controller

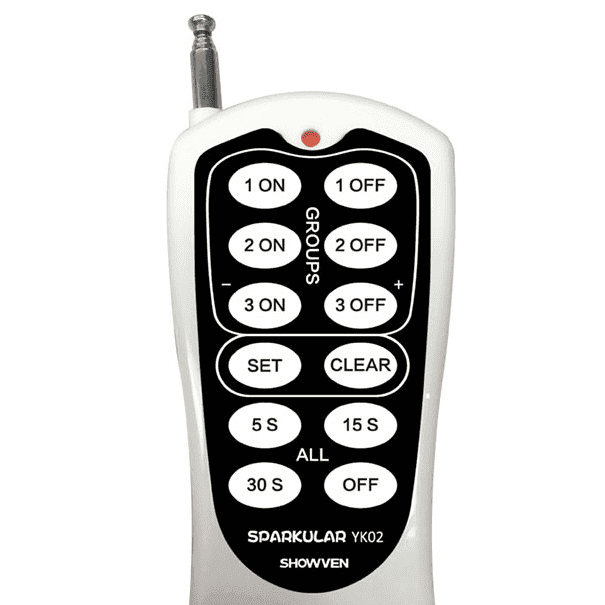

SPARKULAR RADIO CONTROLLER YK-02
SPARKULAR SYSTEMS FX.
Wireless 3-channel wirelesscontroller
for Sparkular Mini and Mini Fall systems.
SPARKULAR RADIO CONTROLLER YK-02
Technical data:
- Radio wireless controller for 3 different control groups.
- Only allows controlling systems in wireless mode for the MINI BT-06 and MINI FALL BT-14 series.
- Function activation of units assigned to GROUP 1 on / off.
- Function activation of units assigned to GROUP 2 on / off.
- Function activation of units assigned to GROUP 3 on / off.
- Activation function of all groups at oncewithtimeintervals
already assigned in 5,15, 30 seconds of duration and general stop button OFF.
- CLEAR function button automatic cleaning for 3 seconds of all controlled equipment.
- SET button function to assign control groups.
- Internal mini battery model MN23 12v. 23A.
- Dimensions. 390x300x110 mm.
- Weight. 0.2 kg.
Recommendations for use:
- On all Sparkular controllers and equipment The CLEAR function allows us to do a test and cleaning check
of the equipment used (The CLEAR function does not consume any time on the equipment used)
- If the equipment (Radio Controller) is going to stop being used in a fairly large period of time
It is recommended to remove the internal battery to avoid deterioration of the radio controller.
